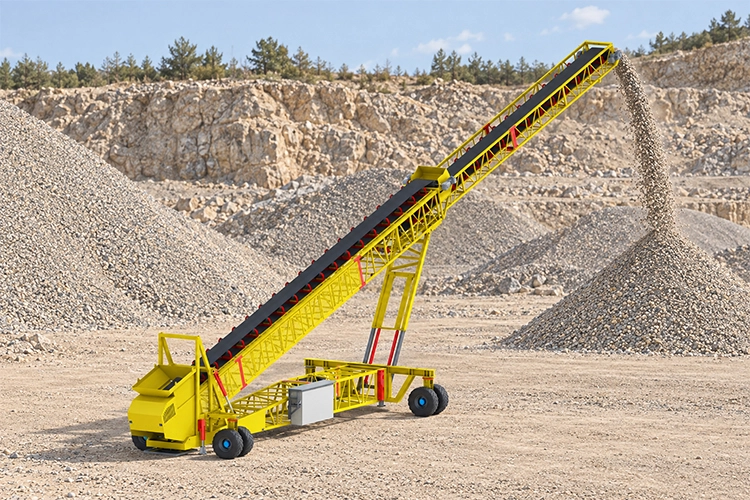

Wheeled Radial Telescopic Stacker

Name: Wheeled Radial Telescopic Stacker
Brand: SANTO
Rating: 5 (156 reviews)

The wheeled radial telescopic stacker, also known as tire-mounted ship loader, is a high-efficiency bulk material handling equipment. It is specially designed for mines, ports, building materials and grain storage. Integrating mobility, radial rotation, boom telescopic extension and height adjustment, it is an advanced alternative to traditional fixed stackers.

Capacity: 500-700 TPH
Conveying Length: 36-42 m
Stacking Height: 15.1-17.6 m

Get A Price Chat Online

Wheeled Radial Telescopic Stacker Structure

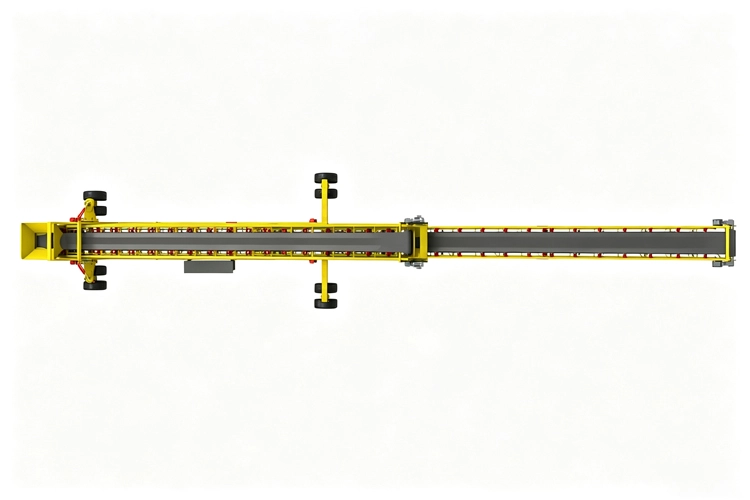

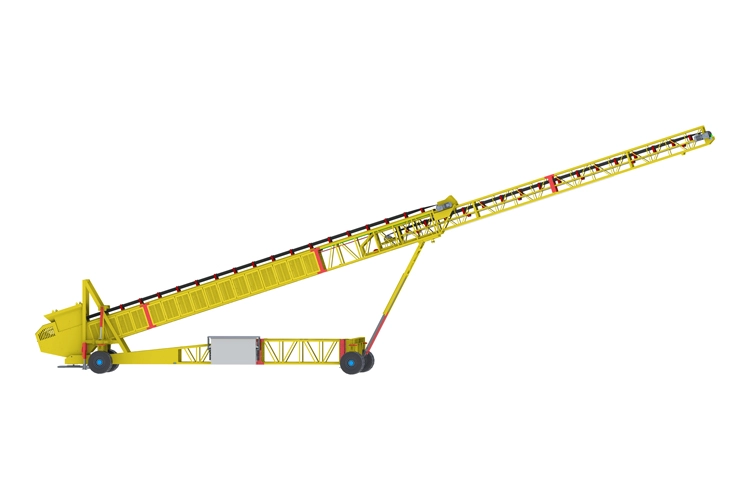

Wheeled radial telescopic stacker structure diagram

01Telescopic Boom

Variable Discharge Reach

The telescopic boom extends and retracts to serve different pile radii, vessel sizes and hatch
positions.

02Luffing Cylinders

Adjustable Working Height

Hydraulic luffing changes the conveyor angle to suit stockpile height or ship-hold depth.

03Radial Wheels

Powered Radial Travel

Hydraulic wheel drives move the conveyor through a controlled arc for wider material coverage.

04Outriggers

Hydraulic Stabilization

Outriggers support a stable operating platform during telescoping, lifting and radial movement.

Wheeled Radial Telescopic Stacker Advantages

Continuous Long Distance Conveying

The long-distance design enables continuous conveying of bulk materials, greatly improving operation efficiency.

Large-Volume Stockpiling

The telescopic + liftable combination design allows for the formation of large-volume conical/linear stockpiles.

Flexible Relocation

No fixed foundation needed—flexible relocation cuts redundant costs.

Operational Safety Devices

Equipped with multiple safety devices such as emergency stop buttons and limit protection to ensure safe operation.

Wheeled Travel Mechanism

Equipped with a wheeled travel mechanism, adapting to various working sites and vessel docking positions.

Telescopic and Tilting Boom

The boom can extend and tilt to accommodate different vessel sizes and hold depths, ensuring precise placement of materials.

Hydraulic Radial Movement

Hydraulic Outrigger Stability

Equipped with hydraulic outriggers, it supports the machine during operation to enhance overall stability.

Wheeled Radial Telescopic Stacker Technical Parameters

Model	Belt Width	Length	Stacking Height	Working Angle	Max. Bulk Volume	Capacity
RWS1036	1000 mm / 39.3 in	36 m / 118.1 ft	15.1 m / 49.5 ft	7°–23°	38,345 m³	500 T/H
RWS1042	1000 mm / 39.3 in	42 m / 137.8 ft	17.6 m / 57.7 ft	7°–23°	67,942 m³	500 T/H
RWS1236	1200 mm / 47.2 in	36 m / 118.1 ft	15.1 m / 49.5 ft	7°–23°	38,345 m³	700 T/H
RWS1242	1200 mm / 47.2 in	42 m / 137.8 ft	17.6 m / 57.7 ft	7°–23°	67,942 m³	700 T/H

*The above data are for reference only. For specific information, please refer to the actual product and product manual. Unless otherwise specified, the right to interpret the data involved in this website belongs to SANTO.

*SANTO can provide customized equipment tailored to your specific needs. Contact us anytime.
