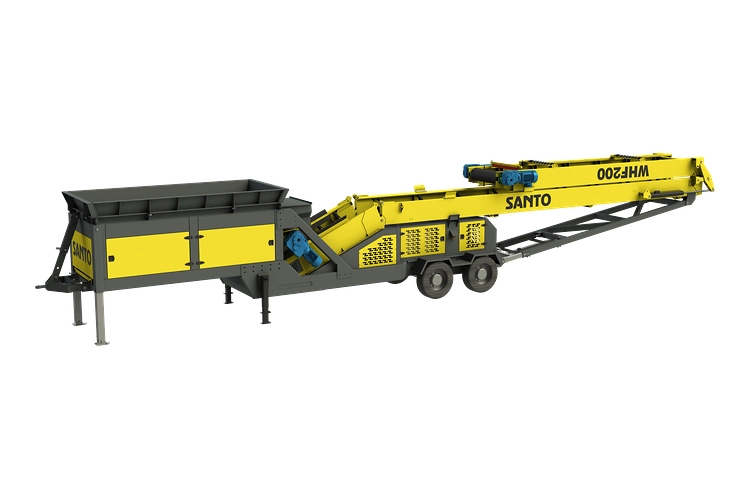

Wheeled mobile conveyor transport configuration

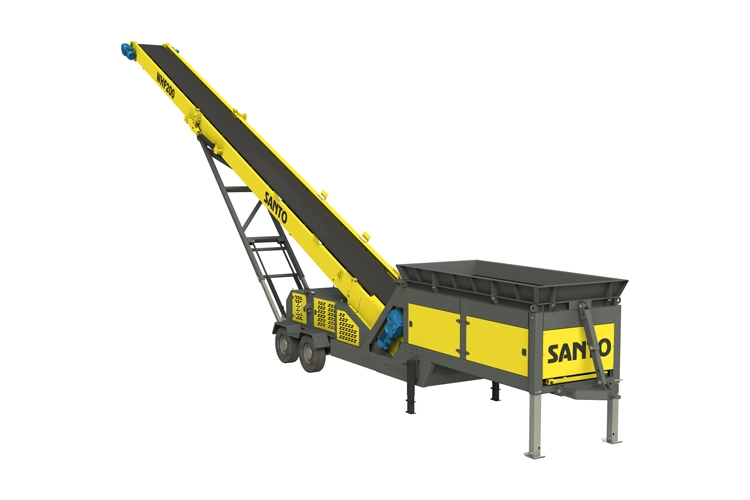

Wheeled Hopper Stacker

Name: Wheeled Hopper Stacker
Brand: SANTO
Rating: 5 (189 reviews)

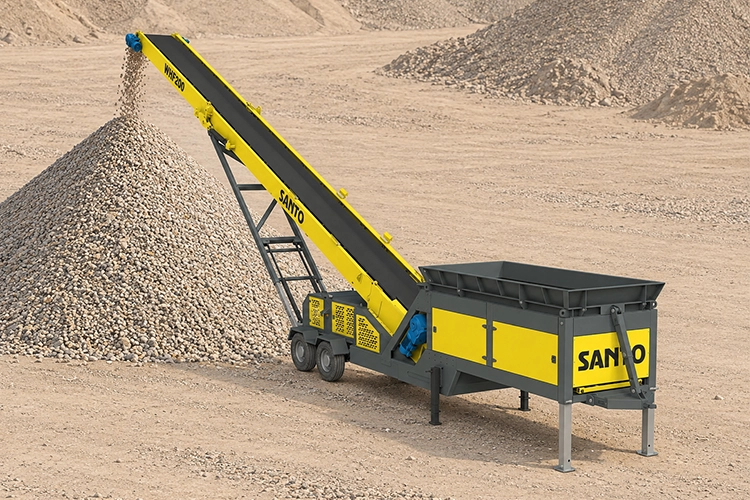

Wheeled hopper stacker is mainly designed for a range of applications like loading, unloading, feeding and transferring bulk materials, effectively eliminates the need to have both a separate hopper feed unit and a stacker unit. As with all Santo’s other mobile conveyors, the feeder wheeled stacker series can be customized to suit the client’s specific requirements.

Capacity: 500-700 TPH
Conveying Length: 15-20 m
Stacking Height: 7.0-8.9 m

Get A Price Chat Online

Wheeled Hopper Stacker Structure

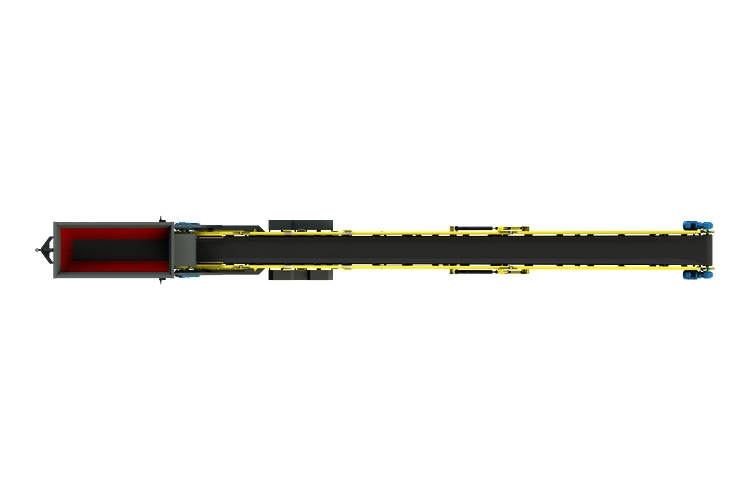

Wheeled hopper stacker structure diagram

01Flow Hopper

Material-flow Hopper

The hopper geometry promotes steady discharge and helps prevent bridging when receiving mixed bulk materials.

02Wheeled Chassis

Wheeled Mobility

The wheeled chassis makes short site moves straightforward and reduces dependence on permanent feed infrastructure.

03Hydraulic Folding

Hydraulic Folding Design

The conveyor folds and lowers for transport, helping crews move efficiently between contracts or operating areas.

04Hybrid Power

Hybrid Drive Choice

The hybrid technology includes an onboard electric motor; the operator can balance mobility, fuel consumption and available site utilities.

Wheeled Hopper Stacker Advantages

Efficient Hopper Flow

Specifically designed hopper improves material flow eliminating bridging and ensures efficient movement of materials.

Hydraulic Transport Folding

Folds/Lowers hydraulically for transport, cost effective transport around the globe.

Hybrid Power Flexibility

The use of hybrid technology includes an onboard electric motor that provides the flexibility to run the equipment from an external power source or the standard onboard engine.

Wheeled Site Mobility

The wheeled unit provides excellent mobility on site.

Hopper Design Options

Range of designs and hopper capacities depending on feeding equipment and production rates on site.

Variable Speed Belt Feeder

Variable speed belt feeder to ensure efficient material transfer from hopper to discharge conveyor.

Direct Material Loading

Directly discharge from wheel loaders, grab cranes or excavators, and eliminates the double handling of material on site.

Wheeled Hopper Stacker Technical Parameters

Model	Belt Width	Length	Stacking Height	Stockpile Volume	Capacity	Weight
WHF1015	1000 mm / 39.3 in	15 m / 50 ft	7.0 m / 22.9 ft	559.6 m³	500 T/H	13 t
WHF1020	1000 mm / 39.3 in	20 m / 65 ft	8.9 m / 29.2 ft	1,181.2 m³	500 T/H	14 t
WHF1215	1200 mm / 47.2 in	15 m / 50 ft	7.0m / 22.9 ft	559.6 m³	700 T/H	15 t
WHF1220	1200 mm / 47.2 in	20 m / 65 ft	8.9 m / 29.2 ft	1,181.2 m³	700 T/H	16 t

*The above data are for reference only. For specific information, please refer to the actual product and product manual. Unless otherwise specified, the right to interpret the data involved in this website belongs to SANTO.

*SANTO can provide customized equipment tailored to your specific needs. Contact us anytime.
