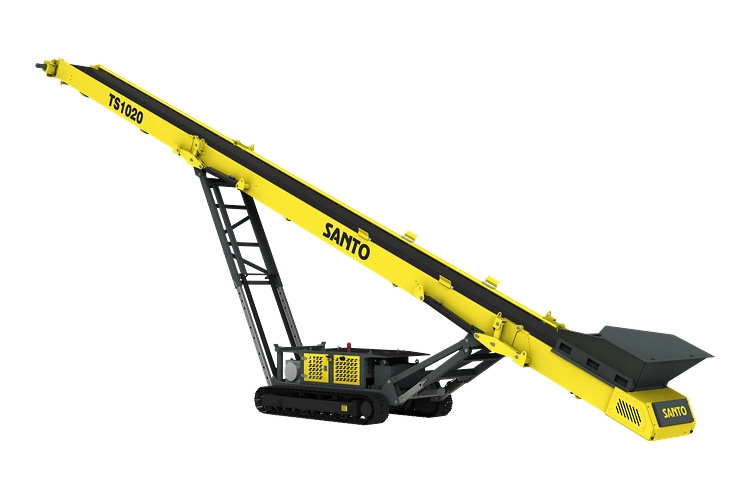

Tracked Stacker

Name: Tracked Stacker
Brand: SANTO
Rating: 5 (316 reviews)

Designed to work in the harshest of environments, the tracked stacker ensures that screeners and crushers operate at maximum capacity. One or more pieces of equipment can meet the requirements of material transportation over multiple distances, link different equipment, and enable cross-country transportation. Santo tracker stacker is the perfect stockpiling solution for a range of applications and material types.

Capacity: 300-700 TPH
Conveying Length: 15-30 m
Stacking Height: 6.5-13.4 m

Get A Price Chat Online

Tracked Stacker Structure

Tracked Stockpiler Structure Diagram

01Tracked Chassis

Heavy-duty Track Frame

The crawler chassis maintains traction and controlled relocation across uneven quarry, mine and recycling sites.

02Feed Height

Variable Feed Height

Hydraulic height adjustment aligns the feed end with upstream equipment to reduce impact and improve material transfer.

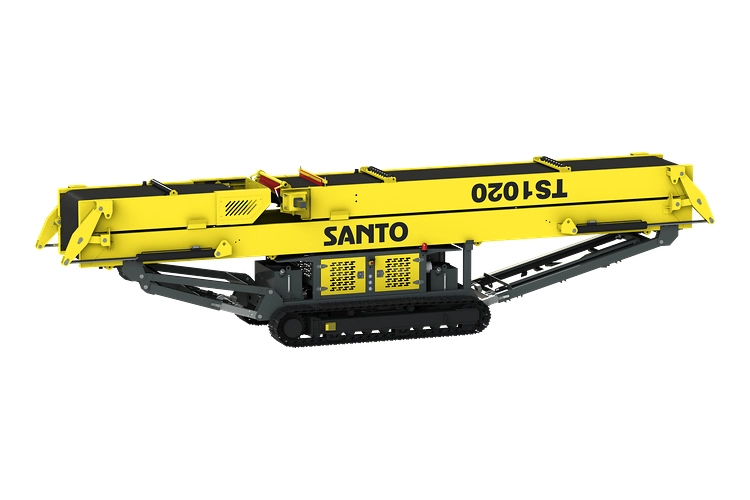

03Hydraulic Folding

Transport-ready Folding

The conveyor lowers and folds hydraulically, reducing preparation time for low-loader transport between sites.

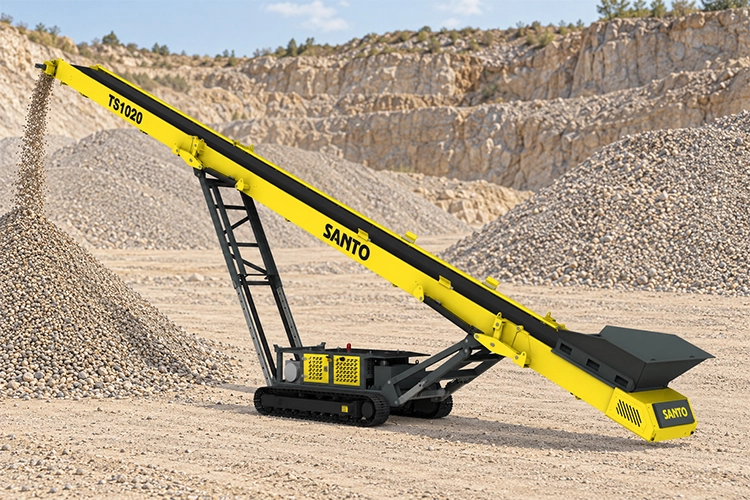

04Efficient Stockpiling

Lower Handling Demand

Continuous stacking can reduce wheel-loader movement, fuel use and repeated material handling around the stockpile.

Tracked Stacker Advantages

High Stockpiling Capacity

The stockpiling capacity can reach 1000t/h. And the feeding particle size is 0- 350 mm. The conveyor length ranges from 15m to 30m.

Continuous Crusher and Screener Feeding

Can be continually fed by any primary / secondary crusher or screener, dramatically increase productivity and efficiency.

Reduced Double Handling

Eliminate double handling of material with wheel loader.

Adjustable Feed Height

Hydraulic adjustment for variable feed height reduces impact and provides optimal material transfer.

Hydraulic Transport Folding

Folds/Lowers hydraulically for transport, get the machine ready for transport quickly and easily.

Heavy Duty Tracks

Track frame – heavy duty tracks suitable for any environment

Lower Fuel Consumption

Cut your fuel burn in half compared to a wheel loader.

Tracked Stacker Technical Parameters

Model	Belt Width	Length	Stacking Height	Stockpile Volume	Capacity	Weight
TS815	800 mm / 31.5 in	15 m / 50 ft	6.5 m / 21.3 ft	450.2 m³	300 T/H	8.8 t
TS820	800 mm / 31.5 in	20 m / 65 ft	8.6 m / 28.2 ft	1,060.2 m³	300 T/H	10.5 t
TS824	800 mm / 31.5 in	24 m / 80 ft	9.9 m / 32.4 ft	1,631.6 m³	300 T/H	11 t
TS830	800 mm / 31.5 in	30 m / 100 ft	13.4 m / 43.9 ft	4,193.5 m³	300 T/H	20 t
TS1015	1000 mm / 39.3 in	15 m / 50 ft	6.5 m / 21.3 ft	450.2 m³	500 T/H	9.8 t
TS1020	1000 mm / 39.3 in	20 m / 65 ft	8.6 m / 28.2 ft	1,060.2 m³	500 T/H	11.5 t
TS1024	1000 mm / 39.3 in	24 m / 80 ft	9.9 m / 32.4 ft	1,631.6 m³	500 T/H	12 t
TS1030	1000 mm / 39.3 in	30 m / 100 ft	13.4 m / 43.9 ft	4,193.5 m³	500 T/H	22 t
TS1215	1200 mm / 47.2 in	15 m / 50 ft	6.5 m / 21.3 ft	450.2 m³	700 T/H	10.8 t
TS1220	1200 mm / 47.2 in	20 m / 65 ft	8.6 m / 28.2 ft	1,060.2 m³	700 T/H	12.5 t
TS1224	1200 mm / 47.2 in	24 m / 80 ft	9.9 m / 32.4 ft	1,631.6 m³	700 T/H	13 t
TS1230	1200 mm / 47.2 in	30 m / 100 ft	13.4 m / 43.9 ft	4,193.5 m³	700 T/H	24 t

*The above data are for reference only. For specific information, please refer to the actual product and product manual. Unless otherwise specified, the right to interpret the data involved in this website belongs to SANTO.

*SANTO can provide customized equipment tailored to your specific needs. Contact us anytime.
