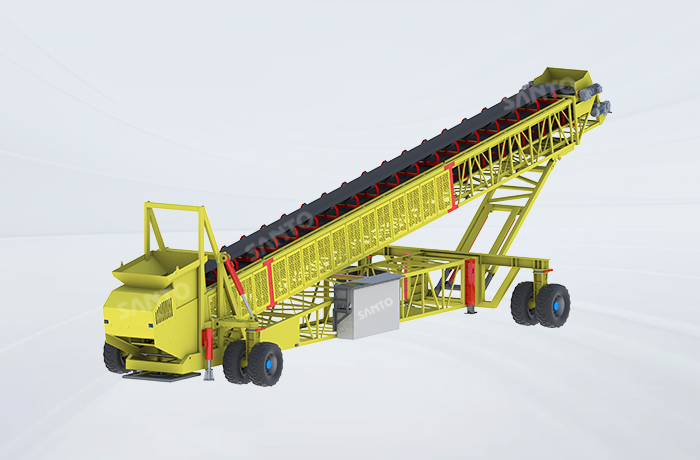

The wheeled telescopic stacker, also known as tire-mounted ship loader, is a high-efficiency bulk material handling equipment. It is specially designed for mines, ports, building materials and grain storage. Integrating mobility, radial rotation, boom telescopic extension and height adjustment, it is an advanced alternative to traditional fixed stackers.
Equipped with a wheeled travel mechanism, adapting to various working sites and vessel docking positions.

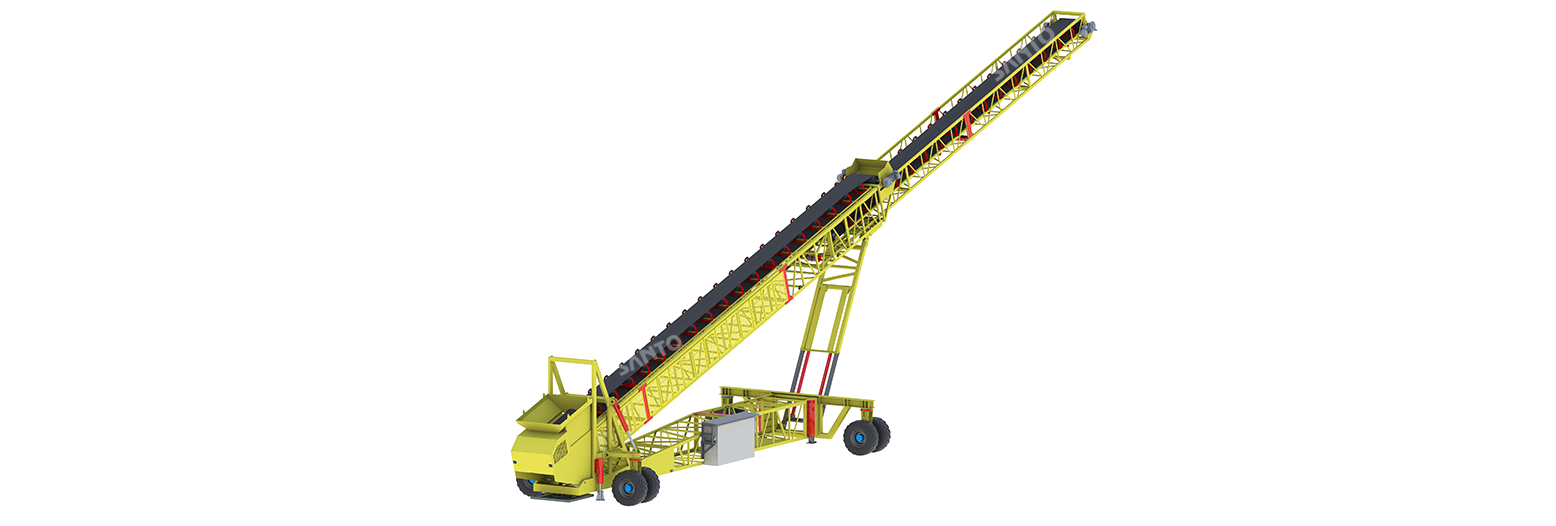

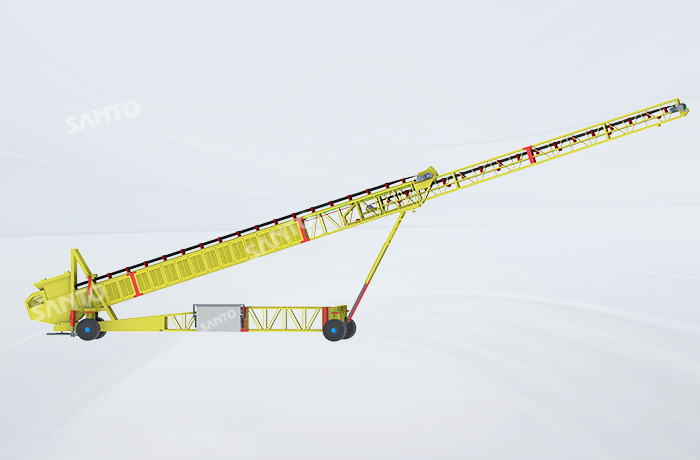

The boom can extend and tilt to accommodate different vessel sizes and hold depths, ensuring precise placement of materials.
Powered by hydraulic motors, the tires enable radial movement with stable rotation, delivering a wider stacking range.
Equipped with hydraulic outriggers, it supports the machine during operation to enhance overall stability.
The long-distance design enables continuous conveying of bulk materials, greatly improving operation efficiency.

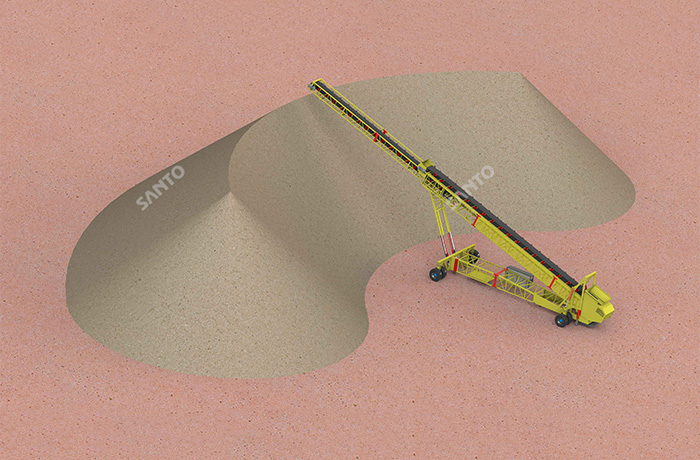

The telescopic + liftable combination design allows for the formation of large-volume conical/linear stockpiles.
No fixed foundation needed—flexible relocation cuts redundant costs.
Equipped with multiple safety devices such as emergency stop buttons and limit protection to ensure safe operation.
Equipped with a wheeled travel mechanism, adapting to various working sites and vessel docking positions.
The boom can extend and tilt to accommodate different vessel sizes and hold depths, ensuring precise placement of materials.
Powered by hydraulic motors, the tires enable radial movement with stable rotation, delivering a wider stacking range.
Equipped with hydraulic outriggers, it supports the machine during operation to enhance overall stability.
Wheeled radial telescopic stacker has a wide range of applications, suitable for bulk material stacking, transferring and ship loading in mines, ports, docks, building materials, sand yards, grain silos, mixing plants and other scenarios.
|
Model |
Belt Width (mm) |
Length (m) |
Discharging Height (m) |
Working Angle |
Max. Bulk Volume (m³) |
Capacity (T/H) |
|
RWS1036 |
1000 (39.3inch) |
36 (118.1ft) |
15.1(49.5ft) |
7°–23° |
38345 |
500 |
|
RWS1042 |
1000 (39.3inch) |
42 (137.8ft) |
17.6 (57.7ft) |
7°–23° |
67942 |
500 |
|
RWS1236 |
1200 (47.2inch) |
36 (118.1ft) |
15.1 (49.5ft) |
7°–23° |
38345 |
700 |
|
RWS1242 |
1200 (47.2inch) |
42 (137.8ft) |
17.6 (57.7ft) |
7°–23° |
67942 |
700 |
