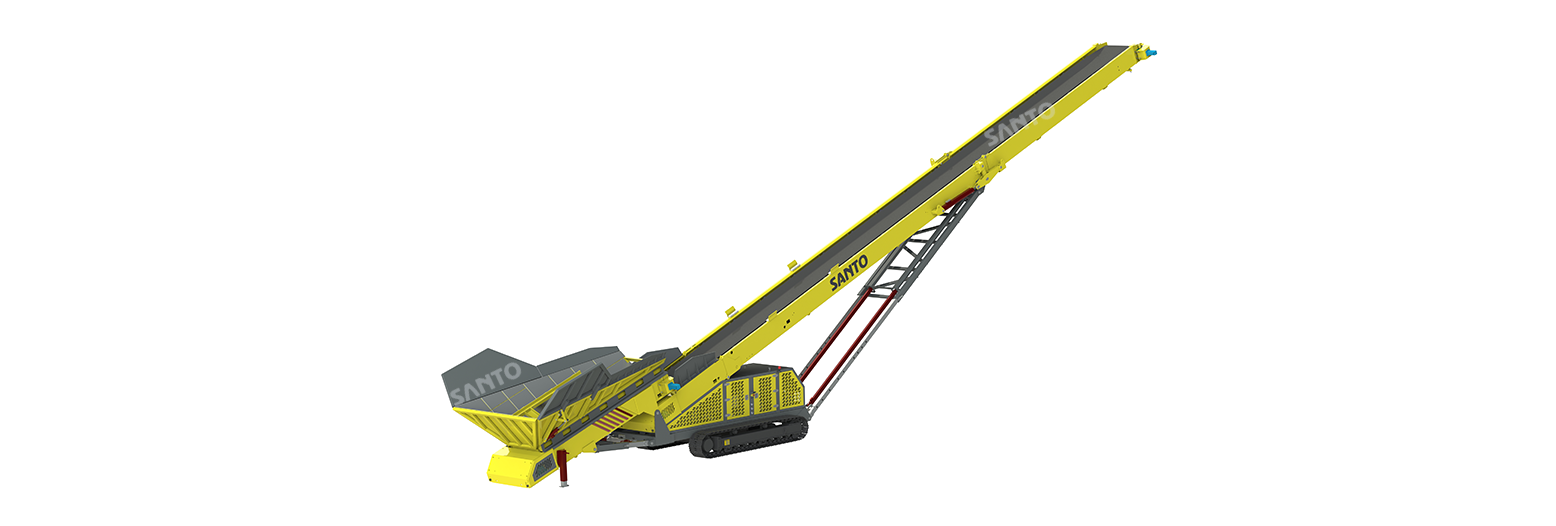

SANTO low-level track stackers allow operators to unload directly from wheel loaders, grab cranes, and excavators, with a feed height much lower than that of standard hopper feeders. We offer a range of standard models with conveyor lengths of up to 24m (78’), hopper capacity of up to 8m³ (10 yrds³).and fully customized machines can also be provided according to the specific requirements of customers.

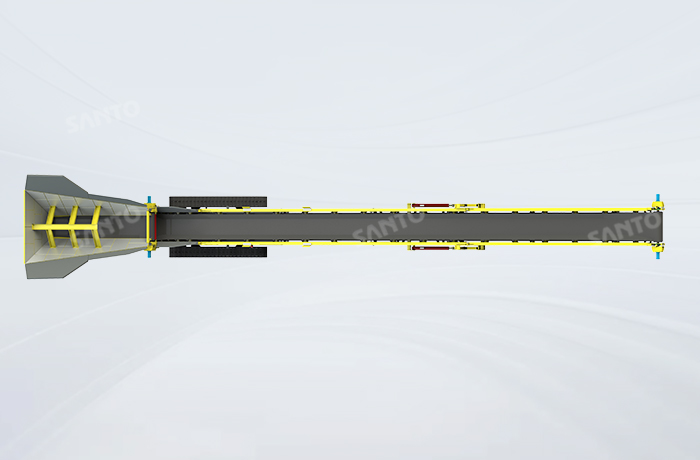

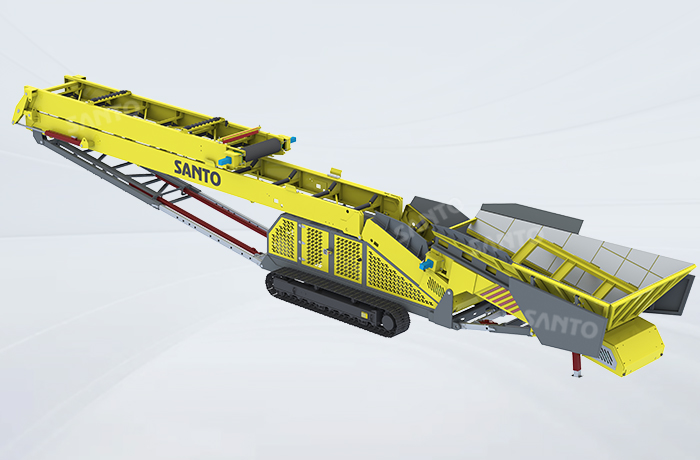

Equipped with a large-inclination receiving hopper at the front, it can directly take material from crushers, screens, loaders and other equipment.
Hydraulic folding head section allowing for compact road transportation and container transportation.
It has its own traveling drive, enabling independent relocation without a tractor, for more flexible deployment.
Hydraulic outriggers support the machine during operation, greatly improving stability.
It replaces loaders in repetitive stacking work, significantly reducing fuel, labor and equipment maintenance costs.
Low feed height--compared to other hopper conveyors, it effectively lowers the feed height for upstream equipment.

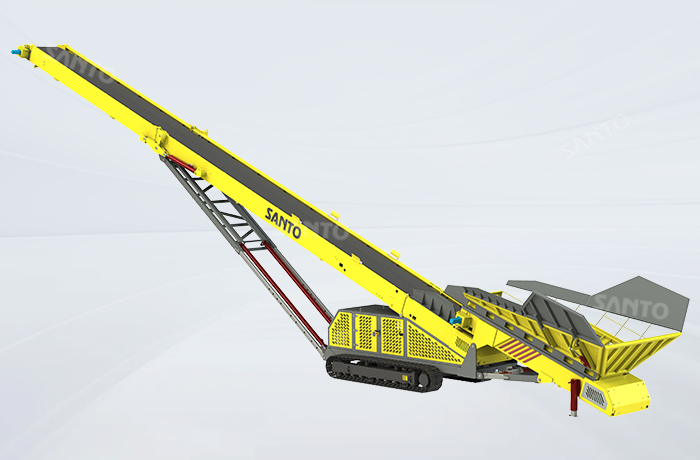

The conveying arm realizes large-angle lifting via hydraulic cylinders.
The hopper capacity can be customized according to different feeding equipment.
Equipped with a large-inclination receiving hopper at the front, it can directly take material from crushers, screens, loaders and other equipment.
Hydraulic folding head section allowing for compact road transportation and container transportation.
It has its own traveling drive, enabling independent relocation without a tractor, for more flexible deployment.
Hydraulic outriggers support the machine during operation, greatly improving stability.

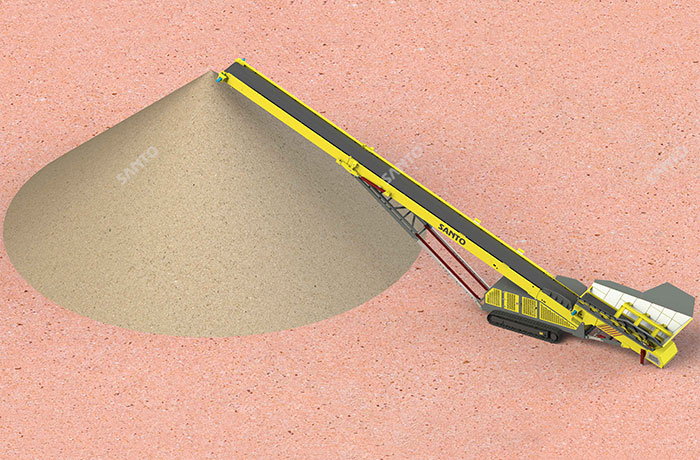

The LTS series stacker can handle a wide range of materials, including coal, grain, fertilizer, ores (iron, copper, gold, bauxite), aggregates, wood chips, wood pellets, sulfur, cement clinker, and more.
|
Model |
Belt Width (mm) |
Length (m) |
Discharging Height (m) |
Stockpile Volume (m3) |
Bulk Weight (t) |
Capacity (T/H) |
|
LTS1020 |
1000 (39.3inch) |
20 (65.6ft) |
8.3 (27.2ft) |
940 |
1504 |
500 |
|
LTS1024 |
1000 (39.3inch) |
24(78.7ft) |
9.8(32.1ft) |
1578 |
2525 |
500 |
|
LTS1220 |
1200 (47.2inch) |
20 (65.6ft) |
8.3 (27.2ft) |
940 |
1504 |
700 |
|
LTS1224 |
1200 (47.2inch) |
24 (78.7ft) |
9.8(32.1ft) |
1578 |
2525 |
700 |
