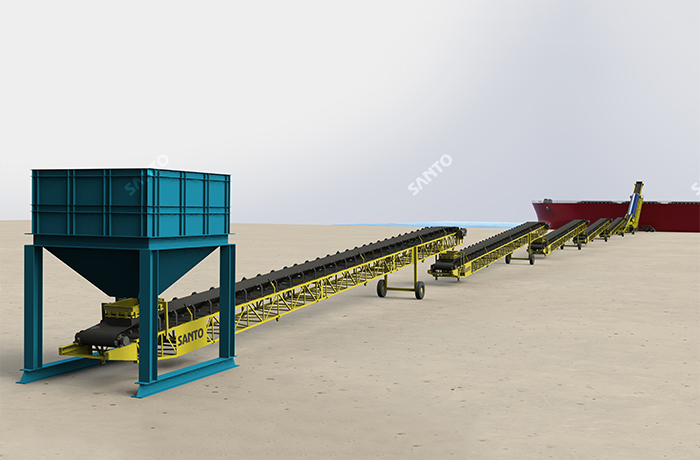

Grasshopper conveyors, also known as transfer conveyors or jump conveyors, are mobile conveying systems mainly used in the mining and aggregates industries. Grasshopper conveyors are designed for long-distance material transport, as conveying materials is the most cost-effective and environmentally friendly method of material handling.
Wheel-mounted designed for versatile mobility options, multi-faceted stacking.
The motor and reducer are integrated at the drive head, featuring high power transmission efficiency and easy maintenance.
Available in lengths ranging from 20m to 45m, tailored to specific applications.
Discharge height is adjustable, enabling precise docking with the feed inlets of various equipment.
Long-distance conveying capability, greatly improving efficiency and reducing the need for multiple handling equipment.
Cost-effective and eco-friendly operation, with lower energy consumption and maintenance compared to trucks and other transport methods.
Stable performance, suitable for continuous heavy-duty work under various working conditions.
Easy to operate and maintain, helping to reduce labor intensity and on-site safety risks.
Wheel-mounted designed for versatile mobility options, multi-faceted stacking.
The motor and reducer are integrated at the drive head, featuring high power transmission efficiency and easy maintenance.
Available in lengths ranging from 20m to 45m, tailored to specific applications.
Discharge height is adjustable, enabling precise docking with the feed inlets of various equipment.
SANTO grasshopper conveyor (jumping conveyor) is widely used in various industries, including quarries, mining operations, logistics, ports, inland terminals and power plants.
| Model | Belt Width (mm) | Length (m) | Discharging Height (m) | Working Angle | Horizontal Distance (m) | Capacity (T/H) |
| JC820 | 800 (31.5inch) |
20 (65.6ft) | 3.3 (10.8ft) | 3°–7° | 19.8 | 300 |
| JC830 | 800 (31.5inch) |
30 (98.4ft) | 4.5(14.7ft) | 3°–7° | 29.7 | 300 |
| JC835 | 800 (31.5inch) |
35 (114.8ft) | 5.1 (16.7ft) | 3°–7° | 34.7 | 300 |
| Model | Belt Width (mm) | Length (m) | Discharging Height (m) | Working Angle | Horizontal Distance (m) | Capacity (T/H) |
| JC1020 | 1000 (39.3inch) |
20 (65.6ft) | 3.3 (10.8ft) | 3°–7° | 19.8 | 500 |
| JC1030 | 1000 (39.3inch) |
30 (98.4ft) | 4.5(14.7ft) | 3°–7° | 29.7 | 500 |
| JC1035 | 1000 (39.3inch) |
35 (114.8ft) | 5.1 (16.7ft) | 3°–7° | 34.7 | 500 |
| Model | Belt Width (mm) | Length (m) | Discharging Height (m) | Working Angle | Horizontal Distance (m) | Capacity (T/H) |
| JC1220 | 1200 (47.2inch) |
20 (65.6ft) | 3.3 (10.8ft) | 3°–7° | 19.8 | 700 |
| JC1230 | 1200 (47.2inch) |
30 (98.4ft) | 4.5(14.7ft) | 3°–7° | 29.7 | 700 |
| JC1235 | 1200 (47.2inch) |
35 (114.8ft) | 5.1 (16.7ft) | 3°–7° | 34.7 | 700 |
